THE ULTIMATE MUD RIDE
Every component of the Sportsman High Lifter ATV has been engineered for extreme mud performance. The 952cc engine that has been tuned for prolonged wide-open throttle bursts, to the high and low range mud specific transmission with lower gearing.
- 29.5″ High Lifter Outlaw 2 Tires
- Shielded Clutch and Engine Intake Ducting
- Rack Mounted Radiator and Inverted Dual Fans
- Stiffer Springs for High 13.5″ Ground Clearance
- High and Low Mud Specific Transmission with Lower Gearing
PURPOSE BUILT FOR MUD ADVENTURE
Engineered with a shielded clutch and engine ducting so you can go in, get through, and climb out of your favorite mud hole. The ProStar engine produces up to 85 HP of mudding power as it breathes fresh air from specially equipped high-mount intakes.
TAKE ON THE MUD IN COMFORT
Special suspension calibrations including stiffer spring rates help maintain an elevated 13.5” of ground clearance, avoiding obstacles and maintaining traction in deep ruts while still delivering a level of comfort, control and smooth ride Sportsman is known for.
POWER TO PULL
Industry-first center mounted mud bar and recovery ready 3,500 lb Polaris HD winch has the power to pull you out of almost anything. Factory-installed on XP 1000 High Lifter Edition only.

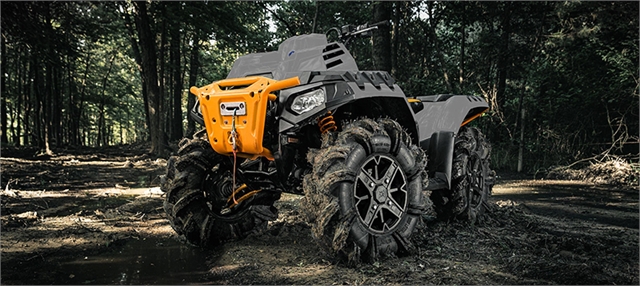

Sportsman XP 1000 High Lifter Edition
Includes
- Factory-Installed 29.5″ High Lifter Outlaw 2 Tires
- Custom Aluminum Wheels
- Shielded Clutch and Engine Intake Ducting
- Rack-Mounted Radiator with Industry-Exclusive Inverted Dual Fans
- High-Mounted Front and Rear Bumpers
- 3,500 lb Polaris HD Winch with Integrated Tow Hooks
- Industry-First Centered Handlebar-Mounted Mud Bar
- Stiffer Springs for High Ground Clearance
- High and Low Mud Specific Transmission with Lower Gearing
- Sealed Single Beam Headlights
- Sealed Key Switch
Details
| Status: |
New |
| Vehicle: |
2021 Polaris Sportsman 850 High Lifter Edition |
| Model Number: |
A21SXN85A4 |
| Fuel Type: |
Gasoline |
| Transmission: |
Manual |
| Color: |
Ghost Gray |
| Location: |
ATV Zone, LLC |
| Warranty: |
Manufacturer’s w/ Extended Available |
Specifications
BRAKES
| Front Brake Type: |
Hydraulic Disc |
| Rear Brake Type: |
Hydraulic Disc |
DRIVE LINE
| Differential Lock Location: |
Rear |
| Driveline Brand: |
On-Demand™ |
| Driveline Type: |
Selectable 4X2 / 4X4 |
| Limited Slip Differential Location: |
Rear |
| Number Of Driveline Modes: |
2 |
ENGINE
| Bore (in): |
3.43 |
| Bore (mm): |
87 |
| Carburetion Brand: |
Mikuni |
| Carburetion Type: |
Fuel Injected |
| Compression Ratio: |
11 |
| Cooling: |
Liquid |
| Cylinders: |
2 |
| Displacement (cc): |
850 |
| Displacement (ci): |
51.9 |
| Engine Brand Name: |
ProStar™ |
| Engine Stroke: |
4-Stroke |
| Engine Type: |
Parallel Twin |
| Fuel Injector Size (mm): |
42 |
| Fuel Injector: |
Yes |
| Fuel Requirements: |
Regular |
| Fuel Type: |
Gas |
| Horsepower (bhp): |
78 |
| Horsepower (kW): |
57.5 |
| Starter: |
Electric |
| Stroke (in): |
2.81 |
| Stroke (mm): |
71.5 |
| Valve Configuration: |
SOHC |
| Valves Per Cylinder: |
4 |
| Valves: |
8 |
EXTERIOR
| Bash Plate (Front): |
Yes |
| Body Material: |
Composite |
| Floor Board Location: |
Driver |
| Frame: |
Steel |
INSTRUMENTATION
| Fuel Level Warning Type: |
Gauge |
| Temperature Warning Type: |
Light |
LIGHTS
PRICING
| Warranty (Condition): |
Limited |
| Warranty (Months): |
6 |
SEATS
| Number Of Seats: |
1 |
| Seat Height (in): |
39 |
| Seat Height (mm): |
990 |
| Seat Location: |
Driver |
| Seat Material: |
Vinyl |
| Seat Type: |
One-Piece |
STEERING
| Steering Control: |
Handlebar |
| Steering Type: |
Manual |
STORAGE
| Capacity (kgs): |
34 |
| Capacity (lbs): |
75 |
| Number Of Cupholders: |
1 |
SUSPENSION
| Front Suspension Type: |
Independent Double A-Arm |
| Front Travel (in): |
7.4 |
| Front Travel (mm): |
188 |
| Number Rear Shock Absorbers: |
2 |
| Rear Suspension Material: |
Steel |
| Rear Suspension Type: |
Independent Double A-Arm |
| Rear Travel (in): |
6.7 |
| Rear Travel (mm): |
170 |
TECHNICAL SPECIFICATIONS
| Dry Weight (kg): |
417 |
| Dry Weight (lbs): |
921 |
| Engine Displacement to Weight (cc): |
0.92 |
| Fuel Capacity (gal): |
5.3 |
| Fuel Capacity (l): |
19.9 |
| Ground Clearance (in): |
13.5 |
| Ground Clearance (mm): |
343 |
| Height (in): |
50.4 |
| Height (mm): |
1280 |
| Length (ft): |
7.05 |
| Length (ft/ft): |
7 |
| Length (ft/in): |
0.6 |
| Length (in): |
84.6 |
| Length (mm): |
2150 |
| Payload Capacity (kgs): |
132 |
| Payload Capacity (lbs): |
290 |
| Towing Capacity (kgs): |
680.4 |
| Towing Capacity (lbs): |
1500 |
| Turning Radius (ft): |
14 |
| Wheelbase (in): |
53 |
| Wheelbase (mm): |
1346 |
| Width (in): |
50 |
| Width (mm): |
1270 |
TOWING & HAULING
| Rear Hitch Type: |
Receiver |
| Size (cm): |
3.2 |
| Size (in): |
1.25 |
TRANSMISSION
| Hi / Low Range: |
Yes |
| Primary Drive (Engine / Transmission): |
Belt |
| Primary Drive (Front Wheel): |
Shaft |
| Primary Drive (Rear Wheel): |
Shaft |
| Reverse: |
Yes |
| Transmission Brand: |
Polaris Variable Transmission (PVT) |
| Transmission Type: |
Continuously Variable (CVT) |
WHEELS & TIRES
| Front Tire (Full Spec): |
Outlaw 2 |
| Front Tire Diameter (in): |
30 |
| Front Tire Width: |
9.5 |
| Front Wheel Diameter: |
14 |
| Rear Tire (Full Spec): |
Outlaw 2 |
| Rear Tire Diameter (in): |
30 |
| Rear Tire Width: |
9.5 |
| Rear Wheel Diameter: |
14 |
| Tire Brand: |
Outlaw |
| Wheels Composition: |
Steel |
