Description

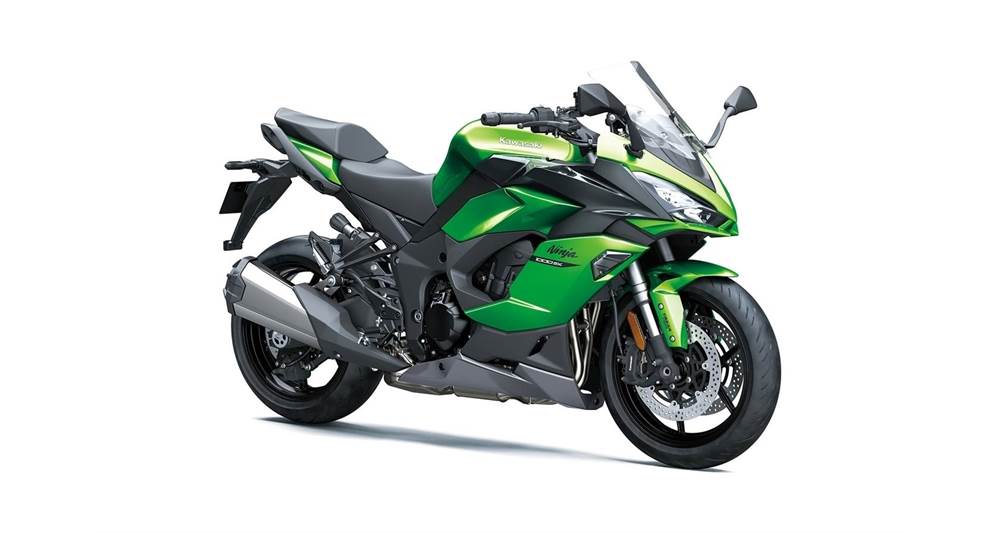

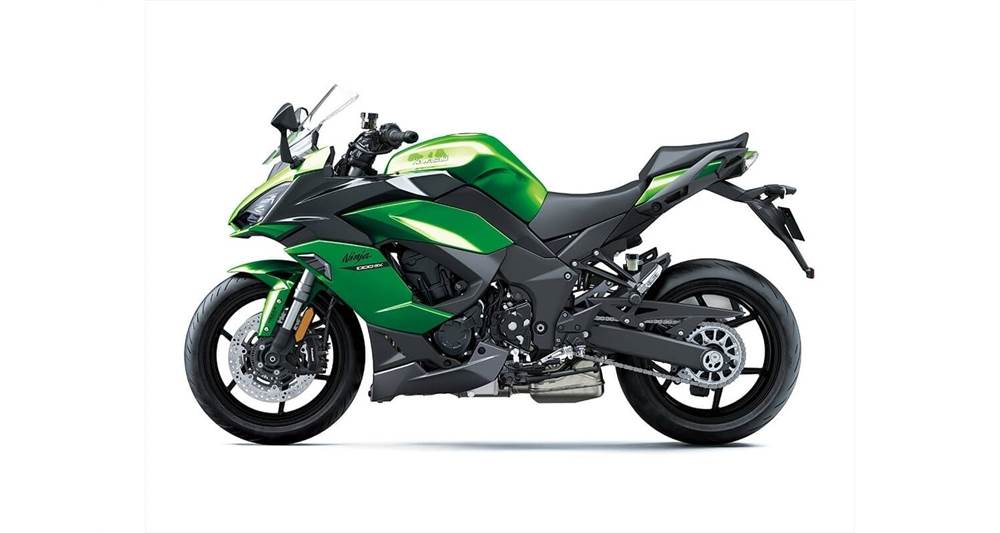

The sport appeal of Kawasaki Ninja motorcycles goes well beyond the racetrack with the remarkably versatile Ninja 1000SX sportbike. Enjoy pure sporting thrill with superior power, two-up touring capability and advanced rider support electronics. A force to be reckoned with on the track and a machine built for weekend trips.
- Engine type: 4-stroke, In-Line Four
- Maximum Power: 105 kW {143 PS} / 10,000
- Maximum Torque: 111.0 N.m {11.3 kgf.m} @ 7,300 rpm
- Valve system: DOHC, 16 valves (4 valves per cylinder)
- Lubrication: Forced lubrication (wet sump)
- Primary reduction ratio: 1.627 (83/51)
- Gear ratio: 1st: 2.600 (39/15)
- Gear ratio: 2nd: 1.950 (39/20)
- Gear ratio: 3rd: 1.600 (24/15)
- Gear ratio: 4th: 1.389 (25/18)
- Gear ratio: 5th: 1.238 (26/21)
- Gear ratio: 6th: 1.107 (31/28)
- Final reduction ratio: 2.733 (41/15)
- Clutch: Wet multi-disc, manual
- Displacement: 1,043cc
- Bore x Stroke: 77.0 x 56.0mm
- Cooling: Liquid
- Fuel System: DFI w/38mm electronic throttle valves
- Compression Ratio: 11.8:1
- Ignition: TCBI with electronic advance
- Transmission: 6-speed, return
- Final Drive: Sealed Chain
- Front suspension/ wheel travel: 41mm inverted cartridge fork with stepless compression and rebound damping, adjustable spring preload/4.7 in
- Wheelbase: 1,440 mm (56.7 in.)
- Front: calipers: Dual radial-mount, monobloc, opposed 4-piston
- Rear: calipers: Single-piston caliper
- Frame type: Aluminum backbone
- Wheel travel: front: 120 mm (4.7 in.)
- Tire: front: 120/70 ZR17
- Wheel travel: rear: 144 mm (5.7 in.)
- Tire: rear: 190/50 ZR17
- Caster (rake): 24.0 deg.
- Trail: 102 mm (4.0 in.)
- Steering angle (left/right): 31 deg. / 31 deg.
- Overall length: 2,100 mm (82.7 in.)
- Overall width: 790 mm (31.2 in.)
- Overall height: 1,185 mm / 1,235 mm
- Brakes: front: Dual 300mm petal-type rotors with radial-mount 4-piston monobloc calipers and ABS
- Brakes: rear: Single 250mm petal-type rotor with single-piston caliper and ABS
- Rear suspension/wheel travel: Horizontal monoshock with stepless rebound damping, remotely adjustable spring preload/5.7 in
- Wheelbase: 1,440 mm (56.7 in.)
- Seat height: 815 mm (32.3 in.)
- Ground clearance: 130 mm (5.1 in.)
- Curb mass**: 235 kg**
- Fuel Capacity: 19 litres (4.2 gal.)
- Warranty: 12 months warranty
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). KAWASAKI CARES: Always wear a helmet, eye protection, and proper apparel. Never ride under the influence of drugs or alcohol. Read Owner’s Manual and all on-product warnings. Professional rider shown on a closed course. 2019 Canadian Kawasaki Motors Inc. Specifications subject to change.
Engine
- Engine Type
- 4-stroke, In-Line Four
- Displacement
- 1,043cc
- Bore and Stroke
- 77.0 x 56.0mm
- Cooling
- Liquid
- Compression Ratio
- 11.8:1
- Fuel System
- DFI w/38mm electronic throttle valves
- Ignition
- TCBI with electronic advance
Transmission
- Transmission
- 6-speed, return
- Final Drive
- Sealed Chain
Chassis
- Front Suspension
- 41mm inverted cartridge fork with stepless compression and rebound damping, adjustable spring preload/4.7 in
- Rear Suspension
- Horizontal monoshock with stepless rebound damping, remotely adjustable spring preload/5.7 in
- Front Brakes
- Dual 300mm petal-type rotors with radial-mount 4-piston monobloc calipers and ABS
- Rear Brakes
- Single 250mm petal-type rotor with single-piston caliper and ABS
- Front Tire
- 120/70 ZR17
- Rear Tire
- 190/50 ZR17
Dimensions
- Wheelbase
- 1,440 mm (56.7 in.)
- Seat Height
- 815 mm (32.3 in.)
- Rake
- 24.0 deg.
- Trail
- 102 mm (4.0 in.)
- Fuel Capacity
- 19 L (4.2 gal.)
- Dry Weight
- Curb Weight: 235 kg
General
- Colors
- Emerald Blazed Green/Metallic Carbon Gray
- Warranty
- 12 months warranty
